High-kawg pob zeb CNC choj pom pom hauv Suav teb:
Hualong Machinery 5-axis CNC choj pom series, xa tawm mus rau ntau tshaj 100 lub teb chaws nrog ISO9001 ntawv pov thawj thiab EU CE ntawv pov thawj. Peb muab thoob ntiaj teb ntawm - cov kev pabcuam hauv chaw thiab xa cov khoom zoo thiab cov kev pabcuam tshaj lij rau cov neeg siv khoom thoob ntiaj teb.
Khoom Taw Qhia
Lub Hualong HKNC-560PLUS 5-axis CNC choj pom tau txais cov nqaj hlau cam khwb cia nrog siab rigidity, ua kom lub taub hau ruaj khov, tsis tshua muaj kev co thiab tsis deformation.
Lub tshuab lub cev raug kho los ntawm cov txheej txheem galvanizing rau kev tiv thaiv zoo heev - xeb thiab xeb- pov thawj kev ua haujlwm.
Nws yog txawm peem rau nrog ib tug ntxiv - loj worktable ntawm 3500 * 2100mm, loj tshaj qhov ntau thiab tsawg tus qauv, enabling processing ntawm super- loj pob zeb slabs.
Nrog rau tag nrho lub tshuab hnyav ze li ntawm 6 tons, nws yog qhov siab -kawg tag nrho - teeb tsa 5-axis CNC choj pom rau kev ua pob zeb.
Raws li tus qauv siab - kawg ntawm Tuam Tshoj lub pob zeb 5-axis CNC choj pom, HKNC-560PLUS tau nruab nrog Italian ESA tswj qhov system, muaj qhov tseeb 5-axis txuas thiab lub zog ywj siab spindle. Standard configuration muaj xws li lub koob yees duab thiab lub tshuab nqus tsev nqus khob.
Feem ntau paub hauv kev ua lag luam xws li 5+1 / 5+2 / 5+3 qauv, nws cov khoom siv hluav taws xob tseem ceeb tau txais lub ntiaj teb- cov npe nrov xws li Siemens thiab Schneider. Nws yog qhov kev xaiv zoo tshaj plaws rau cov neeg siv khoom txawv teb chaws yuav khoom Suav 5-axis CNC choj saws.
Technical Parameters
|
Qauv NO |
Chav tsev |
HKNC 560 PLUS |
|
Txoj kab uas hla ntawm saw hniav |
mm |
ø400-ø560 |
|
Dimension ntawm kev ua haujlwm platform |
mm |
3500x2100 |
|
Max. txiav ntev |
mm |
3500 |
|
Max. txiav thickness |
mm |
150 |
|
Max. nqa stroke |
kg |
300 |
|
Max. nqa qhov hnyav los ntawm lub khob sunction |
kws |
200 |
|
Lub zog ntawm lub cev muaj zog |
kws |
18.8 |
|
Lub zog ntawm cutter ncej reciproctating lub cev muaj zog |
kws |
2 |
|
Lub zog ntawm crossbeam hloov lub cev muaj zog |
kws |
1.1 |
|
Lub zog ntawm qhov chaw nres tsheb hydraulic |
kws |
2.2 |
|
Lub zog ntawm lifting motor |
kws |
0.85 |
|
Lub zog ntawm hluav taws xob spindle |
kws |
5.5 |
|
Lub zog tag nrho |
kws |
32.5 |
|
Kev siv dej |
m3/h |
2 |
|
Qhov hnyav tag nrho |
kg |
5900 |
|
Qhov Loj (L x W x H) |
mm |
5900x3380x3000 |
Core Functions
Muaj tseeb 5-axis zeb CNC choj pom:
Lub A-axis enables chamfering ntawm txhua lub kaum sab xis ntawm 0℃mus rau 90 degree, thiab C-axis txhawb tag nrho kev sib hloov ntawm 0℃mus rau 360℃. Ua ke nrog X, Y thiab Z axes, 5-axis txuas paub txog kev txiav ncaj, hla txiav, lub kaum sab xis txiav, arc, ncig, nkhaus, nkhaus nto thiab 3D shaping ua.
Independent electric spindle:
Txhawb milling, drilling, engraving thiab lwm yam kev ua haujlwm.
Lub koob yees duab positioning muaj nuj nqi:
Nruab nrog lub koob yees duab kev lag luam los ntes cov duab slab, paub txog kev txiav txoj kev layout thiab optimization.
Lub tshuab nqus tsev nqus tsev vacuum:
Kev nyab xeeb txav pob zeb slabs mus rau qhov chaw xaiv thaum lub sij hawm txiav, zam cov khoom pov tseg los ntawm ntau tshaj - txiav.
Lub rooj ua haujlwm:
Loj - loj 3500 * 2100mm worktable, tiltable mus txog 85℃kom yooj yim slab loading.
Cov ntaub ntawv thov
Nws tuaj yeem ua marble, granite, quartz pob zeb / pob zeb dag, sintered pob zeb thiab ceramics.
FAQ
Q: Yuav ua li cas xaiv tus qauv ntawm pob zeb 5-axis CNC choj pom?
A: Txiav txim siab los ntawm slab specifications nrog rau ntev, dav thiab thickness, nrog thickness raws li qhov tseem ceeb. Thib ob, xav txog qhov nyuaj ntawm kev siv tshuab ua haujlwm. Xaiv tus qauv tsim nyog raws li ob lub ntsiab lus saum toj no.
Q: Lub tshuab tswj tau dab tsi?

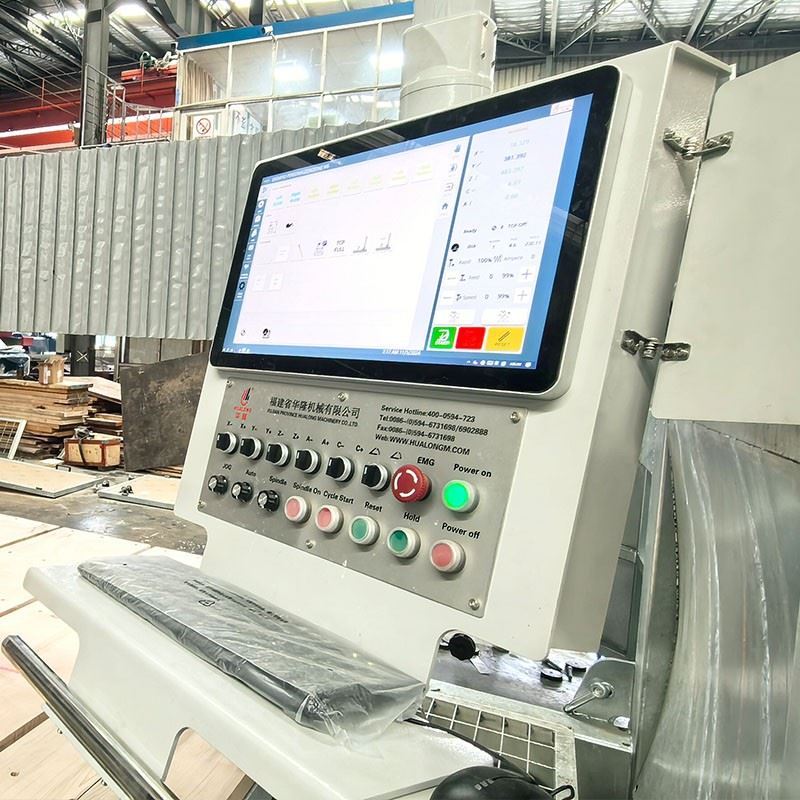

A: Italian ESA tswj qhov system.
Q: Lub tshuab puas muaj ntawv pov thawj CE?
A: Yog lawm, tag nrho peb cov tshuab tseem ceeb yog CE tau ntawv pov thawj.
Q: Cov kev xaiv xaiv twg muaj?
A: Hniav ntsuas ntsuas, slab thickness detector, stainless hlau tiv thaiv qhov rooj, grain qauv splicing muaj nuj nqi, slab kho fixture thiab lwm yam. Ntau lub zog thiab kev teeb tsa yog xaiv tau raws li qhov xav tau.
Q: Puas yog ntawm - qhov chaw teeb tsa thiab kev cob qhia muaj rau cov neeg siv khoom txawv teb chaws?
A: Yog lawm, peb muab kev pabcuam txawv teb chaws rau ntawm - qhov chaw teeb tsa thiab kev cob qhia.
Q: Lub sijhawm lav ntawm lub tshuab yog dab tsi?
A: Lub sijhawm lav tus qauv yog 12 lub hlis.
Q: Lub sij hawm ua khoom siv sij hawm ntev npaum li cas?
A: Feem ntau 30 hnub tom qab tau txais cov nyiaj them ua ntej.
Q: Cov nqe lus lag luam twg tau txais kev txhawb nqa?
A: Peb txhawb cov ntsiab lus lag luam xws li FOB, CIF thiab EXW.
